SPECIFICATION

Number: WK011

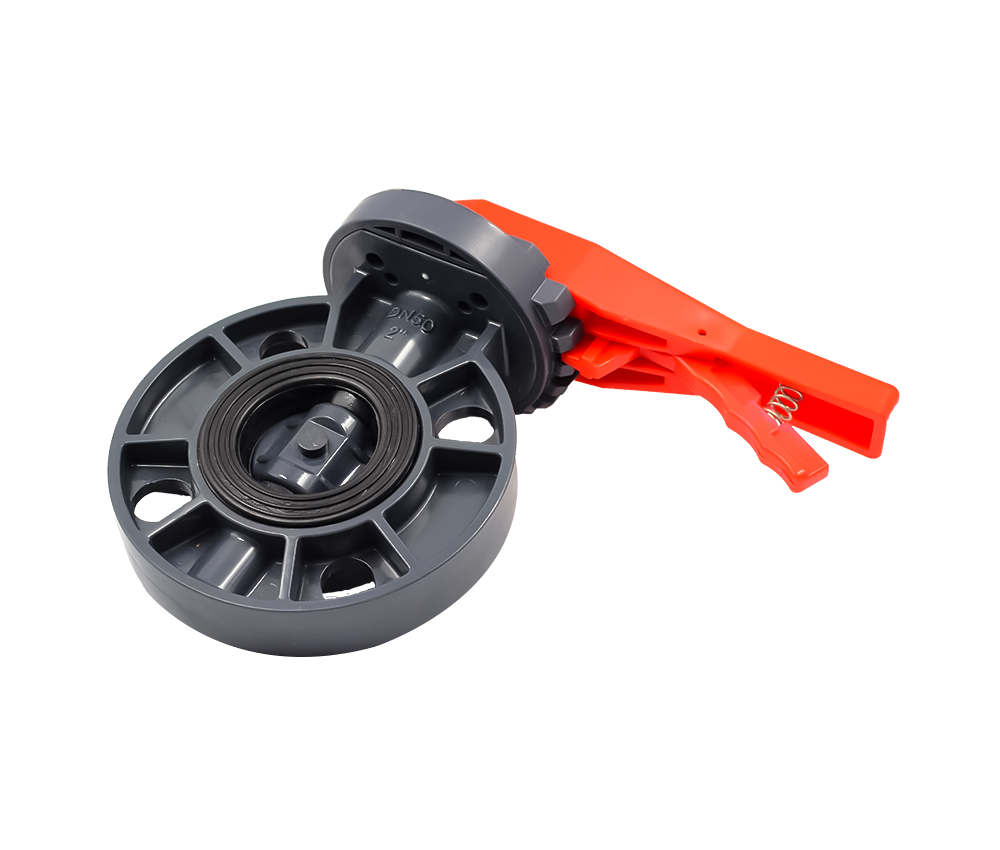

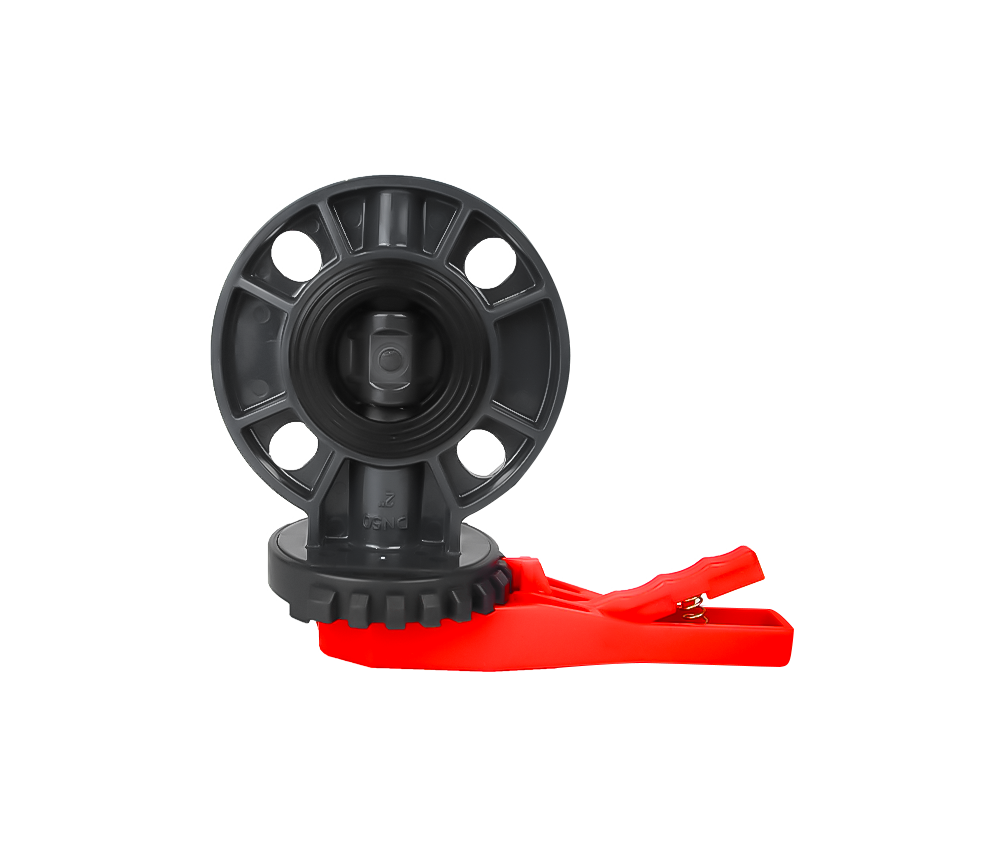

Name: PVC Butterfly valve

Dimensions: 2",2-1/2",3",4",5",6",8"

Material: UPVC

Model: Hand-held (LEVER TYPE)

Lever type

Size	"	2"	21/2"	3"	4"	5"	6"	8"
Size	DN	50	65	80	100	125	150	200
∅D		160	180	196	228	258	287	344
C.D. ∅D1	DIN	125	145	160	180	210	216	295
	ANSI	121	140	152	191	216	241	298
	JIS	120	140	150	11	210	240	290
∅d		48	63	78	98	122	146	199
L		43	46	49	54	64	70	88
∅1		124	124	124	124	170	170	170
∅2		05/07	05/07	05/07	F05/07	F07/10	F07/10	F10
L1		190	190	240	240	310	310	310
W		55	55	55	55	72	72	72
H1		100	112	120	140	168	181	215
H2		143	155	172	194	223	239	280
H		223	245	270	308	352	382	452
n-∅e	DIN	4-∅19	4-∅19	4-∅19	4-∅19	4-∅19	4-∅23	4-∅23
	ANSI	4-∅19	4-∅19	4-∅19	4-∅19	4-∅19	4-∅23	4-∅23
	JIS	4-∅18	4-∅19	4-∅19	4-∅19	4-∅19	4-∅23	4-∅23
PN	PSI	150	150	150	150	150	150	100
PN	MPa	1	1	1	1	1	1	0.6
Weight	Kg/PC	1.13	1.35	1.8	2.4	4.2	4.75	7.6
Torque	N.M	<10	<10	<15	<25	<40	<55	<70
