| Location: | China, Zhejiang, Taizhou |
| Business Type: | Manufacturer, Exporter |
| Minimum order quantity: | 30 boxes |
| Price: | Consultation |
| Packing details: | Consultation |
| Delivery time: | Deliver on time |
| Payment method: | 30% deposit, balance paid before shipment |
0
| Location: | China, Zhejiang, Taizhou |
| Business Type: | Manufacturer, Exporter |
| Minimum order quantity: | 30 boxes |
| Price: | Consultation |
| Packing details: | Consultation |
| Delivery time: | Deliver on time |
| Payment method: | 30% deposit, balance paid before shipment |
SIZE: 1/2"-4"
END CONNECTOR: THREAD, SOCKET
WORKING PRESSURE:1.OMPA
|

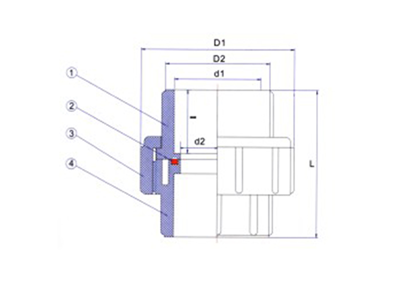

Specification of material |
|||
|
NO. |
PART |
MATERIAL |
Q'TY |
|
1 |
End Connector |
PVC.CPVC |
1 |
|
2 |
O-Ring |
EPDM、FPM(NBR) |
1 |
|
3 |
Union Nut |
PVC.CPVC |
1 |
|
4 |
Body |
PVC.CPVC |
1 |
|
Dimensions |
||||||||||
|
|
OIN/GB |
BS |
ANSI |
JIS |
BSPT NPT |
d2 |
D2 |
D1 |
I |
L |
|
DN15mm(1/2") |
20 |
22 |
21.34 |
22 |
14 14 |
14 |
25 |
40 |
21 |
49 |
|
DN20mm(3/4") |
25 |
26 |
26.67 |
26 |
14 14 |
19 |
32 |
48 |
22 |
53 |
|
DN25mm(1") |
32 |
34 |
33.4 |
32 |
11 11.5 |
24 |
40 |
55 |
28 |
62 |
|
DN32mm(1-1/4") |
40 |
42 |
42.16 |
38 |
11 11.5 |
32 |
52 |
70 |
29 |
65 |
|
DN40mm(1-1/2") |
50 |
48 |
48.26 |
48 |
11 11.5 |
40 |
60 |
81 |
30 |
80 |
|
DN50mm(2") |
63 |
60 |
60.33 |
60 |
11 11.5 |
45 |
72 |
100 |
38 |
95 |
|
DN65(2-1/2") |
75 |
76 |
73.03 |
76 |
11 8 |
60 |
90 |
129 |
40 |
109 |
|
DN80mm(3") |
90 |
89 |
88.9 |
89 |
11 8 |
80 |
103.5 |
145.5 |
48 |
125.5 |
|
DN100mm(4') |
110 |
114 |
114.3 |
114 |
11 8 |
100 |
132.5 |
175 |
60 |
160 |
